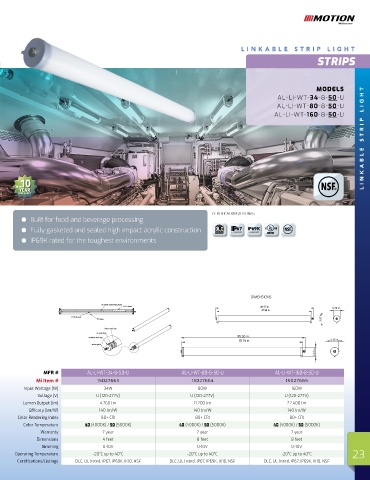

Page 23 - Abaco Lighting Catalog 2024

LINKABLE STRIP LIGHT
STRIPS

MODELS
LINKABLE STRIP LIGHT
AL-LI-WT-34-8-50-U
AL-LI-WT-80-8-50-U
AL-LI-WT-160-8-50-U

10
UP TO
YEAR
WARRANTY

CERTIFICATIONS/LISTINGS
Built for food and beverage processing
Fully gasketed and sealed high impact acrylic construction 67 IP69K

IP69K rated for the toughest environments

DIMENSIONS
module assembly plate
LED driver 49.55 in. 3.32 in.
47.99 in.
PCB board 3.87 in.
PC pipe
inner end cap
O-seal ring
outside end cap 95.30 in. 3.32 in.
93.74 in.
water joint
3.87 in.

MFR # AL-LI-WT-34-8-50-U AL-LI-WT-80-8-50-U AL-LI-WT-160-8-50-U
Mi Item # 15027663 15027664 15027665
Input Wattage (W) 34W 80W 160W
Voltage (V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 4.760 lm 11.200 lm 22.400 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Warranty 7 year 7 year 7 year
Dimensions 4 feet 8 feet 8 feet
Dimming 0-10V 0-10V 0-10V
Operating Temperature -20°C up to 40°C -20°C up to 40°C -20°C up to 40°C 23
Certifications/Listings DLC, UL listed, IP67, IP69K, IK10, NSF DLC, UL listed, IP67, IP69K, IK10, NSF DLC, UL listed, IP67, IP69K, IK10, NSF
