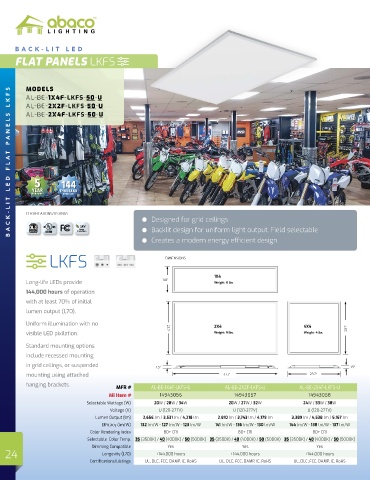

Page 24 - Abaco Lighting Catalog 2024

BACK-LIT LED
FLAT PANELS LKFS

ANELS LKFS MODELS
AL-BE-1X4F-LKFS-50-U
AL-BE-2X2F-LKFS-50-U
AL-BE-2X4F-LKFS-50-U

T P

BACK-LIT LED FLA CERTIFICATIONS/LISTINGS

5
144
YEAR
THOUSAND
WARRANTY
HOURS LIFE
Designed for grid ceilings
1kV
Backlit design for uniform light output. Field selectable
Surge
Protection
Creates a modern energy efficient design
LKFS DIMENSIONS

1X4
Long-life LEDs provide 11.8” Weight: 6 lbs.
144,000 hours of operation
with at least 70% of initial
lumen output (L70),

Uniform illumination with no
2X4 4X4 23.7”
visible LED pixilation. Weight: 9 lbs. Weight: 4 lbs.
23.7”
Standard mounting options
include recessed mounting
in grid ceilings, or suspended 1.5” 1.5”
mounting using attached 47.7” 23.7”
hanging brackets. MFR # AL-BE-1X4F-LKFS-U AL-BE-2X2F-LKFS-U AL-BE-2X4F-LKFS-U

Mi Item # 14943056 14943057 14943058
Selectable Wattage (W) 20W / 28W / 34W 20W / 27W / 32W 24W / 33W / 38W
Voltage (V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 2,656 lm / 3,531 lm / 4,218 lm 2,810 lm / 3,743 lm / 4,179 lm 3,389 lm / 4,538 lm / 5,157 lm
Efficacy (lm/W) 132 lm/W - 127 lm/W - 123 lm/W 141 lm/W - 136 lm/W - 130 lm/W 144 lm/W - 138 lm/W - 137 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Selectable Color Temp. 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes
24 Longevity (L70) +144,000 hours +144,000 hours +144,000 hours
Certifications/Listings UL, DLC, FCC, DAMP, IC, RoHS UL, DLC, FCC, DAMP, IC, RoHS UL, DLC, FCC, DAMP, IC, RoHS
