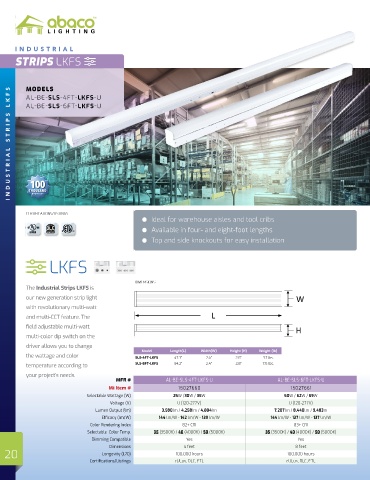

Page 20 - Abaco Lighting Catalog 2024

INDUSTRIAL
STRIPS LKFS

MODELS
INDUSTRIAL STRIPS LKFS
AL-BE-SLS-4FT-LKFS-U
AL-BE-SLS-6FT-LKFS-U

100
THOUSAND
HOURS LIFE

CERTIFICATIONS/LISTINGS
Ideal for warehouse aisles and tool cribs
100
THOUSAND Available in four- and eight-foot lengths
HOURS LIFE
Top and side knockouts for easy installation

LKFS

DIMENSIONS
The Industrial Strips LKFS is
our new generation strip light
with revolutionary multi-watt
and multi-CCT feature. The
field adjustable multi-watt,
multi-color dip switch on the
driver allows you to change
Model Length(L) Width(W) Height (H) Weight (lb)
the wattage and color SLS-4FT-LKFS 47.3” 2.4” 2.8” 3.7 lbs.
temperature according to SLS-8FT-LKFS 94.2” 2.4” 2.8” 7.5 lbs.
your project’s needs.
MFR # AL-BE-SLS-4FT-LKFS-U AL-BE-SLS-6FT-LKFS-U
Mi Item # 15027660 15027661
Selectable Wattage (W) 25W /30W / 35W 50W / 62W / 69W
Voltage (V) U (120-277V) U (120-277V)
Lumen Output (lm) 3,590lm / 4,258lm / 4,804lm 7,207lm / 8,440lm / 9,483m
Efficacy (lm/W) 144 lm/W - 142 lm/W - 139 lm/W 144 lm/W - 137 lm/W - 137 lm/W
Color Rendering Index 82+ CRI 83+ CRI
Selectable Color Temp. 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes
Dimensions 4 feet 8 feet
20 Longevity (L70) 100,000 hours 100,000 hours
Certifications/Listings cULus, DLC, ETL cULus, DLC, ETL
