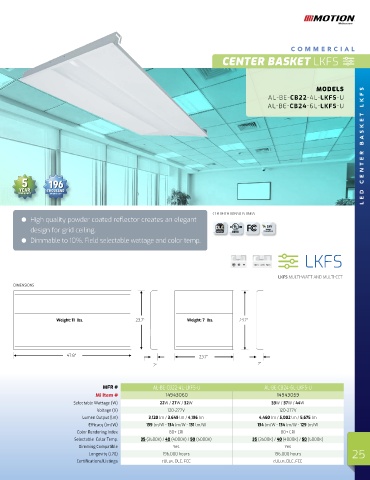

Page 25 - Abaco Lighting Catalog 2024
P. 25
COMMERCIAL
CENTER BASKET LKFS
MODELS
AL-BE-CB22-4L-LKFS-U
AL-BE-CB24-6L-LKFS-U
5 196 LED CENTER BASKET LKFS
YEAR THOUSAND
WARRANTY HOURS LIFE
CERTIFICATIONS/LISTINGS
High quality powder coated reflector creates an elegant
1kV
design for grid ceiling. Protection
Surge
Dimmable to 10%. Field selectable wattage and color temp.
LKFS
LKFS MULTI-WATT AND MULTI-CCT
DIMENSIONS
Weight: 11 lbs. 23.7” Weight: 7 lbs. 23.7”
47.8” 23.7”
2” 2”
MFR # AL-BE-CB22-4L-LKFS-U AL-BE-CB24-6L-LKFS-U
Mi Item # 14943060 14943059
Selectable Wattage (W) 22W / 27W / 32W 33W / 37W / 44W
Voltage (V) 120-277V 120-277V
Lumen Output (lm) 3,120 lm / 3,649 lm / 4,196 lm 4,460 lm / 5,002 lm / 5,675 lm
Efficacy (lm/W) 139 lm/W - 134 lm/W - 131 lm/W 134 lm/W - 134 lm/W - 129 lm/W
Color Rendering Index 80+ CRI 80+ CRI
Selectable Color Temp. 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes
Longevity (L70) 196,000 hours 196,000 hours 25
Certifications/Listings cULus, DLC, FCC cULus, DLC, FCC
