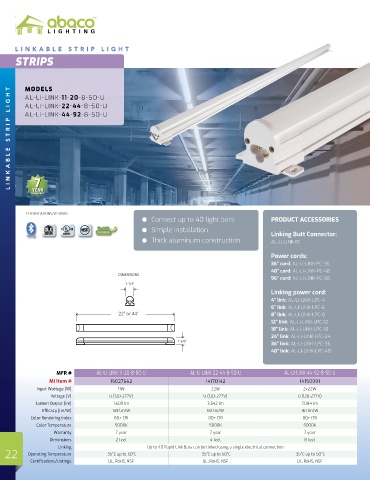

Page 22 - Abaco Lighting Catalog 2024

LINKABLE STRIP LIGHT
STRIPS

MODELS
LINKABLE STRIP LIGHT AL-LI-LINK-22-44-8-50-U
AL-LI-LINK-11-20-8-50-U

AL-LI-LINK-44-92-8-50-U

7

YEAR
WARRANTY

CERTIFICATIONS/LISTINGS
Connect up to 40 light bars PRODUCT ACCESSORIES
Simple installation
® Linking Butt Connector:
Ready
Thick aluminum construction AL-LI-LINK-BC
Power cords:
36” cord: AL-LI-LINK-PC-36
48” cord: AL-LI-LINK-PC-48
DIMENSIONS
96” cord: AL-LI-LINK-PC-96
1-1/4”
Linking power cord:
4” link: AL-LI-LINK-LPC-4
6” link: AL-LI-LINK-LPC-6
22” or 44” 8” link: AL-LI-LINK-LPC-8
12” link: AL-LI-LINK-LPC-12
18” link: AL-LI-LINK-LPC-18
24” link: AL-LI-LINK-LPC-24
1-3/8”
36” link: AL-LI-LINK-LPC-36
48” link: AL-LI-LINK-LPC-48

MFR # AL-LI-LINK-11-20-8-50-U AL-LI-LINK-22-44-8-50-U AL-LI-LINK-44-92-8-50-U
Mi Item # 15027662 14170142 14150991
Input Wattage (W) 11W 22W 2x22W
Voltage (V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 1.609 lm 3.542 lm 7.084 lm
Efficacy (lm/W) 149 lm/W 161 lm/W 161 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 5000K 5000K 5000K
Warranty 7 year 7 year 7 year
Dimensions 2 feet 4 feet 8 feet
Linking
22 Operating Temperature -35°C up to 50°C Up to 40 Rapid Link Bars can be linked using a single electrical connection -35°C up to 50°C
-35°C up to 50°C
Certifications/Listings UL, RoHS, NSF UL, RoHS, NSF UL, RoHS, NSF
