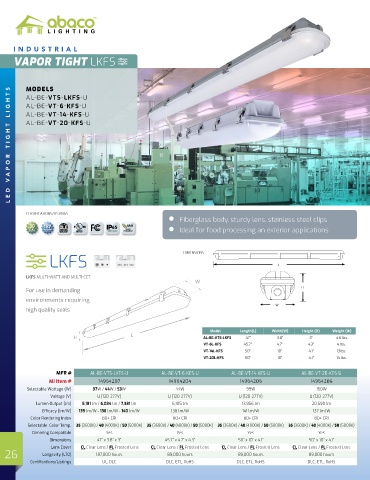

Page 26 - Abaco Lighting Catalog 2024

INDUSTRIAL
VAPOR TIGHT LKFS

MODELS
APOR TIGHT LIGHTS AL-BE-VTS-LKFS-U
AL-BE-VT-6-KFS-U
AL-BE-VT-14-KFS-U
AL-BE-VT-20-KFS-U

LED V

CERTIFICATIONS/LISTINGS
Fiberglass body, sturdy lens, stainless steel clips
10 187 6kV
UP TO 65
YEAR THOUSAND Surge Ideal for food processing an exterior applications
WARRANTY HOURS LIFE Protection
LKFS DIMENSIONS L

LKFS MULTI-WATT AND MULTI-CCT
W
For use in demanding H
environments requiring
W
high quality seals

Model Length(L) Width(W) Height (H) Weight (lb)
H AL-BE-VTS-LKFS 47” 3.8” 3” 4.6 lbs.
VT-6L-KFS 45.7” 4.7” 4.3” 4 lbs.
VT-14L-KFS 50” 10” 4.1” 13lbs.
VT-20L-KFS 50” 10” 4.1” 14 lbs.

MFR # AL-BE-VTS-LKFS-U AL-BE-VT-6-KFS-U AL-BE-VT-14-KFS-U AL-BE-VT-20-KFS-U
Mi Item # 14954207 14954204 14954205 14954206
Selectable Wattage (W) 37W / 44W / 53W 44W 99W 150W
Voltage (V) U (120-277V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 5,181 lm / 6,034 lm / 7,381 lm 6,105 lm 13,956 lm 20,590 lm
Efficacy (lm/W) 139 lm/W - 136 lm/W - 140 lm/W 138 lm/W 141 lm/W 137 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Selectable Color Temp. 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes Yes
Dimensions 47” x 3.8” x 3” 45.7” x 4.7” x 4.3” 50” x 10” x 4.1” 50” x 10” x 4.1”
Lens Cover
26 Longevity (L70) CL Clear Lens / FL Frosted Lens CL Clear Lens / FL Frosted Lens CL Clear Lens / FL Frosted Lens CL Clear Lens / FL Frosted Lens
89,000 hours
89,000 hours
89,000 hours
187,000 hours
Certifications/Listings UL, DLC DLC, ETL, RoHS DLC, ETL, RoHS DLC, ETL, RoHS
