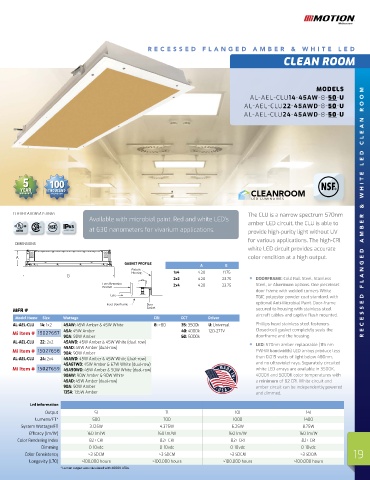

Page 19 - Abaco Lighting Catalog 2024

RECESSED FLANGED AMBER & WHITE LED
CLEAN ROOM

MODELS
AL-AEL-CLU14-45AW-8-50-U
AL-AEL-CLU22-45AWD-8-50-U
AL-AEL-CLU24-45AWD-8-50-U

5 100

YEAR THOUSAND
WARRANTY HOURS LIFE CLEANROOM
L E D L UM IN AI RE S

CERTIFICATIONS/LISTINGS The CLU is a narrow spectrum 570nm RECESSED FLANGED AMBER & WHITE LED CLEAN ROOM
Available with microbial paint. Red and white LED’s
at 630 nanometers for vivarium applications. provide high-purity light without UV
65 amber LED circuit, the CLU is able to
AL-AEL-CLU14-45AW-8-50-U
AL-AEL-CLU22-45AWD-8-50-U for various applications. The high-CRI
DIMENSIONS CROSS SECTION AL-AEL-CLU24-45AWD-8-50-U white LED circuit provides accurate
A color rendition at a high output.
GASKET PROFILE A B
Fixture
Housing 1x4 4.20 11.75
B
2x2 4.20 23.75 DOORFRAME: Cold Roll Steel, Stainless
Lens Retention Steel, or Aluminum options. One pieceinset
Bracket 2x4 4.20 23.75
door frame with welded corners White
Lens TGIC polyester powder coat standard, with
optional Anti-Microbial Paint. Door-frame
Inset Doorframe Door
MFR # Gasket secured to housing with stainless steel
Model Name Size Wattage CRI CCT Driver aircraft cables and captive flush mounted.
AL-AEL-CLU 14: 1x2 45AW: 45W Amber & 45W White 8: >80 35: 3500k U: Universal Phillips head stainless steel fasteners.
Mi Item # 15027657 45A: 45W Amber 40: 4000k 120-277V Closed-cell gasket completely seals the
90A: 90W Amber 50: 5000k doorframe and the housing.
AL-AEL-CLU 22: 2x2 45AWD: 45W Amber & 45W White (dual-row) LED: 570nm amber replaceable (115 nm
45AD: 45W Amber (dual-row)
Mi Item # 15027658 90A: 90W Amber FWHM bandwidth) LED arrays produce less
AL-AEL-CLU 24: 2x4 45AWD: 45W Amber & 45W White (dual-row) than 0.019 watts of light below 480nm,
45A67WD: 45W Amber & 67W White (dual-row) and no ultraviolet rays. Separately circuited
Mi Item # 15027659 45A90WD: 45W Amber & 90W White (dual-row) white LED arrays are available in 3500K,
90AW: 90W Amber & 90W White 4000K and 5000K color temperatures with
45AD: 45W Amber (dual-row) a minimum of 82 CRI. White circuit and
90A: 90W Amber amber circuit can be independently powered
135A: 135W Amber and dimmed.

Led information
Output 5l 7l 10l 14l
Lumens/FT* 500 700 1000 1400
System Wattage/FT 3.125W 4.375W 6.25W 8.75W
Efficacy (lm/W) 160 lm/W 160 lm/W 160 lm/W 160 lm/W
Color Rendering Index 82+ CRI 82+ CRI 82+ CRI 82+ CRI
Dimming 0-10vdc 0-10vdc 0-10vdc 0-10vdc
Color Consistency >3 SDCM >3 SDCM >3 SDCM >3 SDCM 19
Longevity (L70) >100,000 hours >100,000 hours >100,000 hours >100,000 hours
* Lumen output was calculated with 4000K LEDs.
