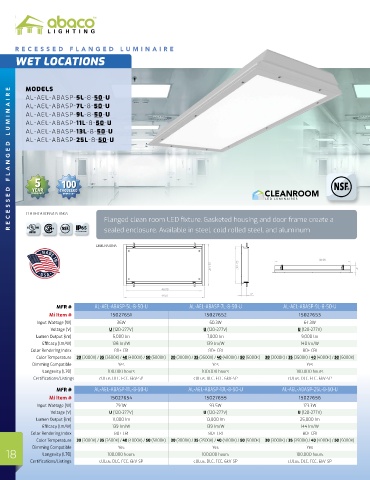

Page 18 - Abaco Lighting Catalog 2024

RECESSED FLANGED LUMINAIRE
WET LOCATIONS

MODELS
RECESSED FLANGED LUMINAIRE
AL-AEL-ABASP-5L-8-50-U
AL-AEL-ABASP-7L-8-50-U
AL-AEL-ABASP-9L-8-50-U
AL-AEL-ABASP-11L-8-50-U
AL-AEL-ABASP-13L-8-50-U
AL-AEL-ABASP-25L-8-50-U

5 100

YEAR THOUSAND
WARRANTY HOURS LIFE CLEANROOM
L E D L UM IN AI RE S

CERTIFICATIONS/LISTINGS
Flanged clean room LED fixture. Gasketed housing and door frame create a
65 sealed enclosure. Available in steel, cold rolled steel, and aluminum

DIMENSIONS

46.00 4"

22 1/4"
25 1/4"
46.00
3"
49.01
MFR # AL-AEL-ABASP-5L-8-50-U AL-AEL-ABASP-7L-8-50-U AL-AEL-ABASP-9L-8-50-U
Mi Item # 15027651 15027652 15027653
Input Wattage (W) 36W 50.3W 64.3W
Voltage (V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 5,000 lm 7,000 lm 9,000 lm
Efficacy (lm/W) 138 lm/W 139 lm/W 140 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 30 (3000K) / 35 (3500K) / 40 (4000K) / 50 (5000K) 30 (3000K) / 35 (3500K) / 40 (4000K) / 50 (5000K) 30 (3000K) / 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes
Longevity (L70) 100,000 hours 100,000 hours 100,000 hours
Certifications/Listings cULus, DLC, FCC, 6kV-SP cULus, DLC, FCC, 6kV-SP cULus, DLC, FCC, 6kV-SP

MFR # AL-AEL-ABASP-11L-8-50-U AL-AEL-ABASP-13L-8-50-U AL-AEL-ABASP-25L-8-50-U
Mi Item # 15027654 15027655 15027656
Input Wattage (W) 79.1W 93.5W 173.3W
Voltage (V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 11,000 lm 13,000 lm 25,000 lm
Efficacy (lm/W) 139 lm/W 139 lm/W 144 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 30 (3000K) / 35 (3500K) / 40 (4000K) / 50 (5000K) 30 (3000K) / 35 (3500K) / 40 (4000K) / 50 (5000K) 30 (3000K) / 35 (3500K) / 40 (4000K) / 50 (5000K)
Yes
Yes
Yes
18 Dimming Compatible 100,000 hours 100,000 hours 100,000 hours
Longevity (L70)
Certifications/Listings cULus, DLC, FCC, 6kV-SP cULus, DLC, FCC, 6kV-SP cULus, DLC, FCC, 6kV-SP
