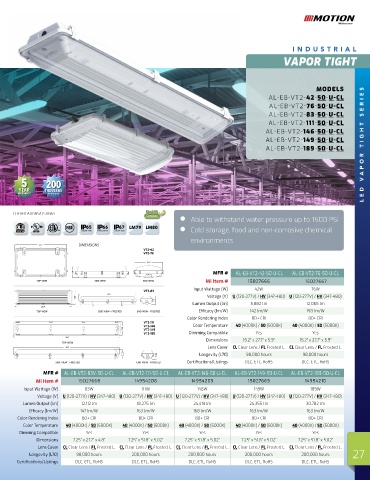

Page 27 - Abaco Lighting Catalog 2024

INDUSTRIAL
VAPOR TIGHT

MODELS
AL-EB-VT2-42-50-U-CL
AL-EB-VT2-76-50-U-CL
AL-EB-VT2-83-50-U-CL
AL-EB-VT2-111-50-U-CL
AL-EB-VT2-146-50-U-CL APOR TIGHT SERIES
AL-EB-VT2-149-50-U-CL
AL-EB-VT2-189-50-U-CL

5 200
YEAR THOUSAND LED V
WARRANTY HOURS LIFE

CERTIFICATIONS/LISTINGS
Able to withstand water pressure up to 1500 PSI
65 66 67 LM79 LM80 Cold storage, food and non-corrosive chemical

environments
27.3" DIMENSIONS
VT2-42
VT2-76
15.2"
5.9" MFR # AL-EB-VT2-42-50-U-CL AL-EB-VT2-76-50-U-CL
Mi Item #
TOP VIEW SIDE VIEW END VIEW 15027666 15027667
Input Wattage (W) 42W 76W
VT2-83
27.7" Voltage (V) U (120-277V) / HV (347-480) U (120-277V) / HV (347-480)
7.25"
4.8"
Lumen Output (lm) 5,882 lm 12,065 lm
27.7"
TOP VIEW SIDE VIEW - FROSTED END VIEW - FROSTED Efficacy (lm/W) 142 lm/W 158 lm/W
Color Rendering Index 80+ CRI 80+ CRI
VT2-111
VT2-146 Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
7.25" VT2-149
VT2-189 Dimming Compatible Yes Yes
51.8"
Dimensions 15.2” x 27.7” x 5.9” 15.2” x 27.7” x 5.9”
TOP VIEW
Lens Cover CL Clear Lens / FL Frosted L. CL Clear Lens / FL Frosted L.
51.8"
5.02" 5.02" Longevity (L70) 98,000 hours 98,000 hours
SIDE VIEW - FROSTED END VIEW - FROSTED Certifications/Listings DLC, ETL, RoHS DLC, ETL, RoHS
MFR # AL-EB-VT2-83V-50-U-CL AL-EB-VT2-111-50-U-CL AL-EB-VT2-146-50-U-CL AL-EB-VT2-149-50-U-CL AL-EB-VT2-189-50-U-CL
Mi Item # 15027668 14954208 14954209 15027669 14954210
Input Wattage (W) 83W 111W 146W 149W 189W
Voltage (V) U (120-277V) / HV (347-480) U (120-277V) / HV (347-480) U (120-277V) / HV (347-480) U (120-277V) / HV (347-480) U (120-277V) / HV (347-480)
Lumen Output (lm) 12,112 lm 18,275 lm 24,419 lm 24,355 lm 30,782 lm
Efficacy (lm/W) 147 lm/W 163 lm/W 168 lm/W 163 lm/W 163 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes Yes Yes
Dimensions 7.25” x 27.7” x 4.8” 7.25” x 51.8” x 5.02” 7.25” x 51.8” x 5.02” 7.25” x 51.8” x 5.02” 7.25” x 51.8” x 5.02”
Lens Cover CL Clear Lens / FL Frosted L. CL Clear Lens / FL Frosted L. CL Clear Lens / FL Frosted L. CL Clear Lens / FL Frosted L. CL Clear Lens / FL Frosted L.
Longevity (L70) 98,000 hours 200,000 hours 200,000 hours 200,000 hours 200,000 hours 27
Certifications/Listings DLC, ETL, RoHS DLC, ETL, RoHS DLC, ETL, RoHS DLC, ETL, RoHS DLC, ETL, RoHS
