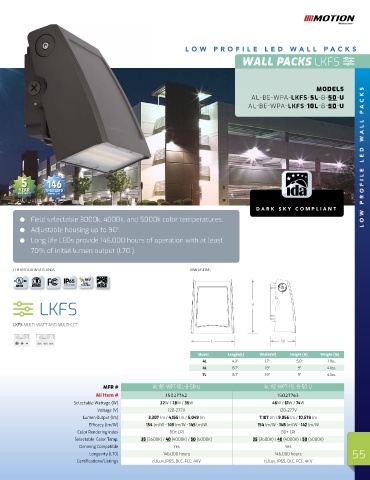

Page 55 - Abaco Lighting Catalog 2024

LOW PROFILE LED W ALL P ACKS
WALL PACKS LKFS

MODELS
AL-BE-WPA-LKFS-5L-8-50-U ACKS
AL-BE-WPA-LKFS-10L-8-50-U
ALL P

5 146 LOW PROFILE LED W
YEAR THOUSAND
WARRANTY HOURS LIFE

DARK SKY COMPLIANT
Field selectable 3000k, 4000k, and 5000k color temperatures.
Adjustable housing up to 90°.
Long life LEDs provide 146,000 hours of operation with at least

70% of initial lumen output (L70 ).

CERTIFICATIONS/LISTINGS DIMENSIONS
4kV
65 Surge
Protection
LKFS

LKFS MULTI-WATT AND MULTI-CCT

Model Length(L) Width(W) Height (H) Weight (lb)
4L 4.3” 1.7” 5.8” 1 lbs.
4L 8.7” 1.9” 9” 4 lbs.
7L 8.7” 1.9” 9” 4 lbs.
MFR # AL-BE-WPT-10L-8-50-U AL-BE-WPT-15L-8-50-U
Mi Item # 15027742 15027743
Selectable Wattage (W) 22W / 28W / 35W 46W / 61W / 74W
Voltage (V) 120-277V 120-277V
Lumen Output (lm) 3,307 lm / 4,155 lm / 5,049 lm 7,107 lm / 9,056 lm / 10,578 lm
Efficacy (lm/W) 154 lm/W - 149 lm/W - 145 lm/W 154 lm/W - 148 lm/W - 142 lm/W
Color Rendering Index 80+ CRI 80+ CRI
Selectable Color Temp. 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes
Longevity (L70) 146,000 hours 146,000 hours 55
Certifications/Listings cULus, IP65, DLC, FCC, 4KV cULus, IP65, DLC, FCC, 4KV
