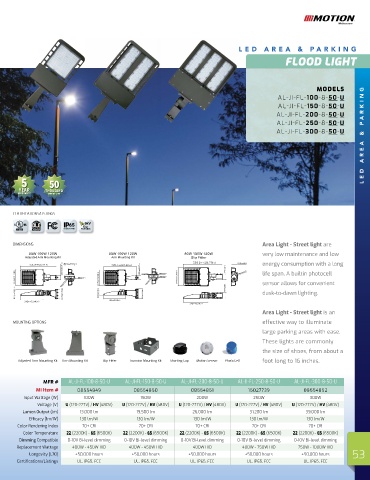

Page 53 - Abaco Lighting Catalog 2024

LED AREA & P ARKING
FLOOD LIGHT

MODELS
AL-JI-FL-100-8-50-U
AL-JI-FL-150-8-50-U ARKING
AL-JI-FL-200-8-50-U
AL-JI-FL-250-8-50-U
LED AREA & P
AL-JI-FL-300-8-50-U

5 50
YEAR THOUSAND
WARRANTY HOURS LIFE

CERTIFICATIONS/LISTINGS
6kV
65 Surge
Protection
DIMENSIONS Area Light - Street light are
80W 100W 120W 80W 100W 120W 80W 100W 120W very low maintenance and low
Adjusted Arm Mounting Kit Arm Mounting Kit Slip Fitter
energy consumption with a long
life span. A builtin photocell
sensor allows for convenient
dusk-to-dawn lighting.

Area Light - Street light is an
MOUNTING OPTIONS effective way to illuminate
large parking areas with ease.
These lights are commonly
the size of shoes, from about a
Adjusted Arm Mounting Kit Arm Mounting Kit Slip Fitter Trunnion Mounting Kit Shorting Cap Motion Sensor Photo Cell foot long to 16 inches.

MFR # AL-JI-FL-100-8-50-U AL-JI-FL-150-8-50-U AL-JI-FL-200-8-50-U AL-JI-FL-250-8-50-U AL-JI-FL-300-8-50-U
Mi Item # 08554849 08554850 08554851 15027739 08554852
Input Wattage (W) 100W 150W 200W 250W 300W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 13,000 lm 19,500 lm 26,000 lm 31,200 lm 39,000 lm
Efficacy (lm/W) 130 lm/W 130 lm/W 130 lm/W 130 lm/W 130 lm/W
Color Rendering Index 70+ CRI 70+ CRI 70+ CRI 70+ CRI 70+ CRI
Color Temperature 22 (2200K) - 65 (6500K) 22 (2200K) - 65 (6500K) 22 (2200K) - 65 (6500K) 22 (2200K) - 65 (6500K) 22 (2200K) - 65 (6500K)
Dimming Compatible 0-10V Bi-level dimming 0-10V Bi-level dimming 0-10V Bi-level dimming 0-10V Bi-level dimming 0-10V Bi-level dimming
Replacement Wattage 400W - 450W HID 400W - 450W HID 400W HID 400W - 750W HID 750W - 1000W HID
Longevity (L70) +50,000 hours +50,000 hours +50,000 hours +50,000 hours +50,000 hours 53
Certifications/Listings UL, IP65, FCC UL, IP65, FCC UL, IP65, FCC UL, IP65, FCC UL, IP65, FCC
