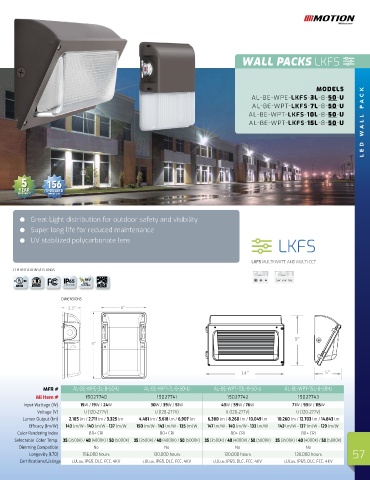

Page 57 - Abaco Lighting Catalog 2024
P. 57
WALL PACKS LKFS
MODELS
AL-BE-WPE-LKFS-3L-8-50-U ACK
AL-BE-WPT-LKFS-7L-8-50-U
AL-BE-WPT-LKFS-10L-8-50-U ALL P
AL-BE-WPT-LKFS-15L-8-50-U
LED W
5 156
YEAR THOUSAND
WARRANTY HOURS LIFE
Great Light distribution for outdoor safety and visibility
Super long life for reduced maintenance
LKFS
UV stabilized polycarbonate lens
LKFS MULTI-WATT AND MULTI-CCT
CERTIFICATIONS/LISTINGS
4kV
65 Surge
Protection
DIMENSIONS
2.5” 6”
9”
9”
14” 5”
MFR # AL-BE-WPE-3L-8-50-U AL-BE-WPT-7L-8-50-U AL-BE-WPT-10L-8-50-U AL-BE-WPT-15L-8-50-U
Mi Item # 15027740 15027741 15027742 15027743
Input Wattage (W) 15W / 19W / 24W 30W / 39W / 51W 43W / 59W / 76W 71W / 93W / 115W
Voltage (V) U (120-277V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 2,105 lm / 2,711 lm / 3,325 lm 4,481 lm / 5,618 lm / 6,907 lm 6,380 lm / 8,260 lm / 10,049 lm 10,260 lm / 12,703 lm / 14,843 lm
Efficacy (lm/W) 143 lm/W - 140 lm/W - 137 lm/W 150 lm/W - 143 lm/W - 135 lm/W 147 lm/W - 140 lm/W - 133 lm/W 143 lm/W - 137 lm/W - 129 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Selectable Color Temp. 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible No No No No
Longevity (L70) 156,000 hours 130,000 hours 130,000 hours 130,000 hours 57
Certifications/Listings cULus, IP65, DLC, FCC, 4KV cULus, IP65, DLC, FCC, 4KV cULus, IP65, DLC, FCC, 4KV cULus, IP65, DLC, FCC, 4KV
