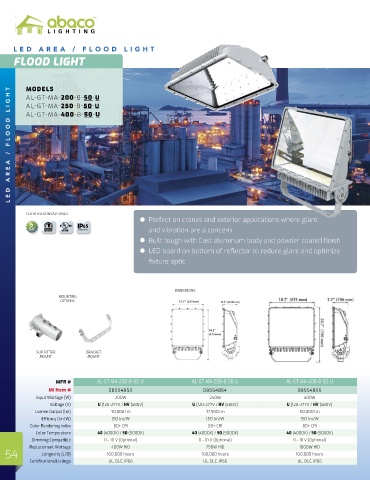

Page 54 - Abaco Lighting Catalog 2024

LED AREA / FLOOD LIGHT
FLOOD LIGHT

MODELS
LED AREA / FLOOD LIGHT
AL-GT-MA-200-8-50-U
AL-GT-MA-250-8-50-U
AL-GT-MA-400-8-50-U

CERTIFICATIONS/LISTINGS
Perfect on cranes and exterior applications where glare
5
YEAR 65 and vibration are a concern.
WARRANTY
Built tough with Cast aluminum body and powder coated finish
LED board on bottom of reflector to reduce glare and optimize
fixture optic

DIMENSIONS
MOUNTING
OPTIONS

SLIP FITTER BRACKET
MOUNT MOUNT

MFR # AL-GT-MA-200-8-50-U AL-GT-MA-250-8-50-U AL-GT-MA-400-8-50-U
Mi Item # 08554853 08554854 08554855
Input Wattage (W) 200W 250W 400W
Voltage (V) U (120-277V / HV (480V) U (120-277V / HV (480V) U (120-277V / HV (480V)
Lumen Output (lm) 30,000 lm 37,500 lm 60,000 lm
Efficacy (lm/W) 150 lm/W 150 lm/W 150 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible 0 - 10 V (Optional) 0 - 10 V (Optional) 0 - 10 V (Optional)
750W HID
1000W HID
400W HID
54 Replacement Wattage 100,000 hours 100,000 hours 100,000 hours
Longevity (L70)
Certifications/Listings UL, DLC, IP66 UL, DLC, IP66 UL, DLC, IP66
