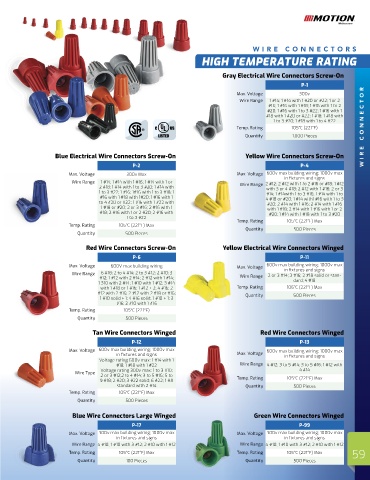

Page 59 - Abaco Lighting Catalog 2024

WIRE CONNECTORS
HIGH TEMPERATURE RATING

Gray Electrical Wire Connectors Screw-On
P-1
Max. Voltage 300v
Wire Range 1 #14; 1 #14 with 1 #20 or #22; 1 or 2
#16; 1 #16 with 1 #18; 1 #16 with 1 to 2
#20; 1 #16 with 1 to 3 #22; 1 #16 with 1
#18 with 1 #20 or #22; 1 #18; 1 #18 with
1 to 3 #20; 1 #18 with 1 to 4 #22
Temp. Rating 105°C (221°F) WIRE CONNECTOR
Quantity 1,000 Pieces

Blue Electrical Wire Connectors Screw-On Yellow Wire Connectors Screw-On
P-2 P-4
Max. Voltage 300v Max Max. Voltage 600v max building wiring; 1000v max
in fixtures and signs
Wire Range 1 #14; 1 #14 with 1 #16; 1 #14 with 1 or Wire Range 2 #12; 2 #12 with 1 to 2 #16 or #18; 1 #12
2 #18; 1 #14 with 1 to 3 #20; 1 #14 with with 3 or 4 #18; 2 #12 with 1 #18; 2 or 3
1 to 3 #22; 1 #16; 1#16 with 1 to 3 #18; 1 #14; 1 #14with 1 to 3 #16; 1 #14 with 1 to
#16 with 1 #18 with 1#20; 1 #16 with 1 4 #18 or #20; 1 #14 with1 #16 with 1 to 3
to 4 #20 or #22; 1 #16 with 1 #22 with #20; 2 #14 with 1 #16; 2 #14 with 1 #16
1 #18 or #20; 2 or 3 #16; 2 #16 with 1 with 1 #18; 2 #14 with 1 #16 with 1 or 2
#18; 2 #16 with 1 or 2 #20; 2 #16 with #20; 1 #14 with 1 #18 with 1 to 3 #20
1 to 3 #22 Temp. Rating
Temp. Rating 105°C (221°F) Max 105°C (221°F) Max
Quantity 500 Pieces
Quantity 500 Pieces
Red Wire Connectors Screw-On Yellow Electrical Wire Connectors Winged
P-6 P-11
Max. Voltage 600V max building wiring Max. Voltage 600v max building wiring; 1000v max
in fixtures and signs
Wire Range 6 #18; 2 to 4 #14; 2 to 3 #12; 2 #10; 3 2 or 3 #14; 3 #16; 2 #18 solid or stan-
#12; 1 #12 with 2 #14; 2 #12 with 1 #14; Wire Range
1 310 with 2 #14; 1 #10 with 1 #12; 3 #14 dard; 4 #18
with 1 #18 or 1 #16; 1 #12 + 2; 4 #16; 2 Temp. Rating 105°C (221°F) Max
#12 with 2 #16; 2 #12 with 2 #18 or #16; Quantity 500 Pieces
1 #10 solid + 1; 4 #16 solid; 1 #10 + 1; 3
#16; 2 #10 with 1 #16
Temp. Rating 105°C (221°F)
Quantity 500 Pieces

Tan Wire Connectors Winged Red Wire Connectors Winged
P-12 P-13
Max. Voltage 600v max building wiring; 1000v max 600v max building wiring; 1000v max
in fixtures and signs Max. Voltage in fixtures and signs
Voltage rating 600v max: 1 #14 with 1
#18; 1 #18 with 1 #22 Wire Range 4 #12; 3 to 5 #14; 3 to 5 #16; 1 #12 with
Voltage rating 300v max: 1 to 3 #10; 4 #14
Wire Type
2 or 3 #12;2 to 4 #14; 3 to 5 #16; 5 to
9 #18; 2 #20; 3 #22 solid; 6 #22; 1 #8 Temp. Rating 105°C (221°F) Max
standard with 2 #14 Quantity 500 Pieces
Temp. Rating 105°C (221°F) Max
Quantity 500 Pieces

Blue Wire Connectors Large Winged Green Wire Connectors Winged
P-17 P-99
Max. Voltage 300v max building wiring; 1000v max Max. Voltage 300v max building wiring; 1000v max
in fixtures and signs in fixtures and signs
Wire Range 4 #10; 1 #10 with 3 #12; 2 #10 with 1 #12 Wire Range 4 #10; 1 #10 with 3 #12; 2 #10 with 1 #12
59
Temp. Rating 105°C (221°F) Max Temp. Rating 105°C (221°F) Max 59
Quantity 100 Pieces Quantity 500 Pieces
