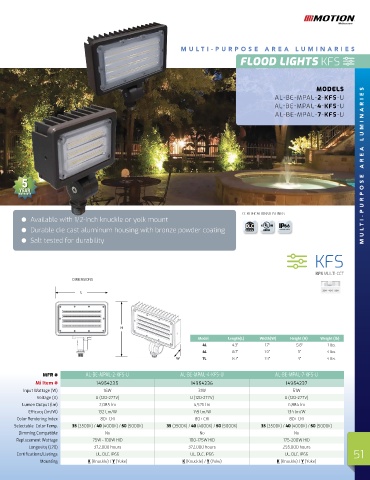

Page 51 - Abaco Lighting Catalog 2024

MUL TI-PURPOSE AREA LUMINARIES
FLOOD LIGHTS KFS

MODELS
AL-BE-MPAL-2-KFS-U
AL-BE-MPAL-4-KFS-U
AL-BE-MPAL-7-KFS-U

5 TI-PURPOSE AREA LUMINARIES

YEAR
WARRANTY

CERTIFICATIONS/LISTINGS
Available with 1/2-inch knuckle or yolk mount
5
Durable die cast aluminum housing with bronze powder coating YEAR 66
WARRANTY
Salt tested for durability MUL
KFS

KFS MULTI-CCT
DIMENSIONS

Model Length(L) Width(W) Height (H) Weight (lb)
4L 4.3” 1.7” 5.8” 1 lbs.
4L 8.7” 1.9” 9” 4 lbs.
7L 8.7” 1.9” 9” 4 lbs.

MFR # AL-BE-MPAL-2-KFS-U AL-BE-MPAL-4-KFS-U AL-BE-MPAL-7-KFS-U
Mi Item # 14954235 14954236 14954237
Input Wattage (W) 16W 31W 51W
Voltage (V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 2,085 lm 4,526 lm 6,884 lm
Efficacy (lm/W) 132 Lm/W 145 lm/W 134 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Selectable Color Temp. 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K) 35 (3500K) / 40 (4000K) / 50 (5000K)
Dimming Compatible No No No
Replacement Wattage 75W - 100W HID 100-175W HID 175-200W HID
Longevity (L70) 372,000 hours 372,000 hours 295,000 hours
Certifications/Listings UL, DLC, IP66 UL, DLC, IP66 UL, DLC, IP66 51
Mounting K (Knuckle) / Y (Yoke) K (Knuckle) / Y (Yoke) K (Knuckle) / Y (Yoke)
