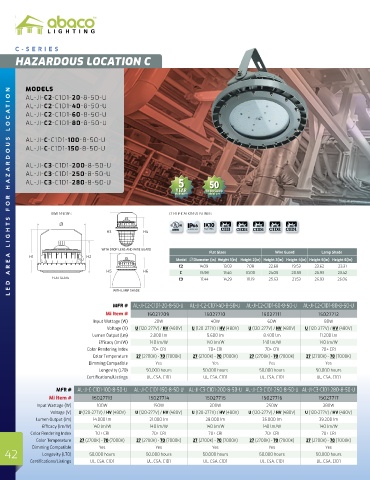

P. 42
C-SERIES
HAZARDOUS LOCATION C
TION MODELS
AL-JI-C2-C1D1-20-8-50-U
AL-JI-C2-C1D1-40-8-50-U
LED AREA LIGHTS FOR HAZARDOUS LOCA
AL-JI-C2-C1D1-60-8-50-U
AL-JI-C2-C1D1-80-8-50-U
AL-JI-C-C1D1-100-8-50-U
AL-JI-C-C1D1-150-8-50-U
AL-JI-C3-C1D1-200-8-50-U
AL-JI-C3-C1D1-250-8-50-U
AL-JI-C3-C1D1-280-8-50-U 5 50
YEAR THOUSAND
WARRANTY HOURS LIFE
DIMENSIONS CERTIFICATIONS/LISTINGS
66
H3 H4 CIII CIID2 CIID1 CID2 CID1
WITH DROP LENS AND WIRE GUARD
Flat Glass Wire Guard Lamp Shade
H1 H2
Model Diameter (in) Height 1(in) Height 2(in) Height 3(in) Height 4(in) Height 5(in) Height 6(in)
C2 14.09 13.03 7.08 22.68 19.53 23.62 23.31
H5 H6 C 15.98 13.46 10.00 24.05 20.55 26.93 23.42
FLAT GLASS C3 17.44 14.29 10.19 25.63 21.53 26.93 26.06
WITH LAMP SHADE
MFR # AL-JI-C2-C1D1-20-8-50-U AL-JI-C2-C1D1-40-8-50-U AL-JI-C2-C1D1-60-8-50-U AL-JI-C2-C1D1-80-8-50-U
Mi Item # 15027709 15027710 15027711 15027712
Input Wattage (W) 20W 40W 60W 80W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 2.800 lm 5.600 lm 8.400 lm 11.200 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 70+ CRI 70+ CRI 70+ CRI 70+ CRI
Color Temperature 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K)
Dimming Compatible Yes Yes Yes Yes
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
MFR # AL-JI-C-C1D1-100-8-50-U AL-JI-C-C1D1-150-8-50-U AL-JI-C3-C1D1-200-8-50-U AL-JI-C3-C1D1-250-8-50-U AL-JI-C3-C1D1-280-8-50-U
Mi Item # 15027713 15027714 15027715 15027716 15027717
Input Wattage (W) 100W 150W 200W 250W 280W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 14.000 lm 21.000 lm 28.000 lm 35.000 lm 39.200 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 70+ CRI 70+ CRI 70+ CRI 70+ CRI 70+ CRI
Color Temperature 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K)
Yes
Yes
Yes
Yes
Yes
42 Dimming Compatible 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Longevity (L70)
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
