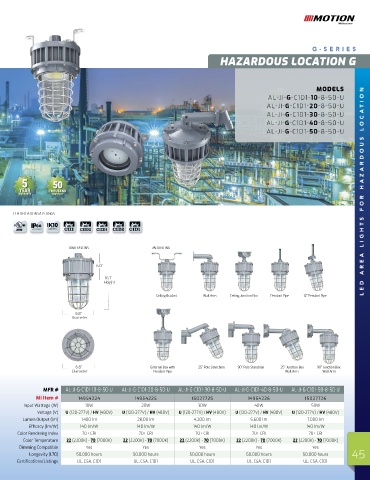

Page 45 - Abaco Lighting Catalog 2024
P. 45
G-SERIES
HAZARDOUS LOCATION G
MODELS
AL-JI-G-C1D1-10-8-50-U TION
AL-JI-G-C1D1-20-8-50-U
AL-JI-G-C1D1-30-8-50-U
AL-JI-G-C1D1-40-8-50-U
AL-JI-G-C1D1-50-8-50-U
5 50
YEAR THOUSAND
WARRANTY HOURS LIFE LED AREA LIGHTS FOR HAZARDOUS LOCA
CERTIFICATIONS/LISTINGS
66
CIII CIID2 CIID1 CID2 CID1
DIMENSIONS MOUNTING
6.0˝
16.1˝
Height
Ceiling Bracket Wall Arm Ceiling Junction Box Pendant Pipe 12˚ Pendant Pipe
6.8˝
Diameter
6.8˝ External Box with 25˚ Pole Stanchion 90˚ Pole Stanchion 25˚ Junction Box 90˚ Junction Box
Diameter Pendant Pipe Wall Arm Wall Arm
MFR # AL-JI-G-C1D1-10-8-50-U AL-JI-G-C1D1-20-8-50-U AL-JI-G-C1D1-30-8-50-U AL-JI-G-C1D1-40-8-50-U AL-JI-G-C1D1-50-8-50-U
Mi Item # 14954224 14954225 15027725 14954226 15027726
Input Wattage (W) 10W 20W 30W 40W 50W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 1,400 lm 28,00 lm 4,200 lm 5,600 lm 7,000 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 70+ CRI 70+ CRI 70+ CRI 70+ CRI 70+ CRI
Color Temperature 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K)
Dimming Compatible Yes Yes Yes Yes Yes
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 45
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
