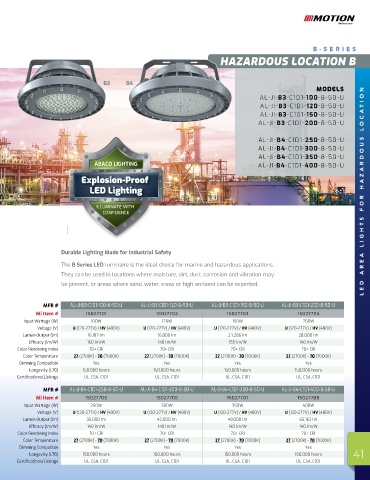

Page 41 - Abaco Lighting Catalog 2024
P. 41
B-SERIES
HAZARDOUS LOCATION B
B3 B4
MODELS
AL-JI-B3-C1D1-100-8-50-U TION
AL-JI-B3-C1D1-120-8-50-U
AL-JI-B3-C1D1-150-8-50-U
AL-JI-B3-C1D1-200-8-50-U
AL-JI-B4-C1D1-250-8-50-U
AL-JI-B4-C1D1-300-8-50-U
AL-JI-B4-C1D1-350-8-50-U
ABACO LIGHTING AL-JI-B4-C1D1-400-8-50-U
Explosion-Proof
LED Lighting
ILLUMINATE WITH LED AREA LIGHTS FOR HAZARDOUS LOCA
CONFIDENCE
Durable Lighting Made for Industrial Safety
The B Series LED luminaire is the ideal choice for marine and hazardous applications.
They can be used in locations where moisture, dirt, dust, corrosion and vibration may
be present, or areas where wind, water, snow or high ambient can be expected.
MFR # AL-JI-B3-C1D1-100-8-50-U AL-JI-B3-C1D1-120-8-50-U AL-JI-B3-C1D1-150-8-50-U AL-JI-B3-C1D1-200-8-50-U
Mi Item # 15027701 15027702 15027703 15027704
Input Wattage (W) 100W 120W 150W 200W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 16,183 lm 16,800 lm 23,286 lm 28,000 lm
Efficacy (lm/W) 160 lm/W 140 lm/W 155 lm/W 140 lm/W
Color Rendering Index 70+ CRI 70+ CRI 70+ CRI 70+ CRI
Color Temperature 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K)
Dimming Compatible Yes Yes Yes Yes
Longevity (L70) 150,000 hours 150,000 hours 150,000 hours 150,000 hours
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
MFR # AL-JI-B4-C1D1-250-8-50-U AL-JI-B4-C1D1-300-8-50-U AL-JI-B4-C1D1-350-8-50-U AL-JI-B4-C1D1-400-8-50-U
Mi Item # 15027705 15027706 15027707 15027708
Input Wattage (W) 250W 300W 350W 400W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 35,000 lm 42,000 lm 49,000 lm 65,163 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 70+ CRI 70+ CRI 70+ CRI 70+ CRI
Color Temperature 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K) 27 (2700K) - 70 (7000K)
Dimming Compatible Yes Yes Yes Yes
Longevity (L70) 150,000 hours 150,000 hours 150,000 hours 150,000 hours 41
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
