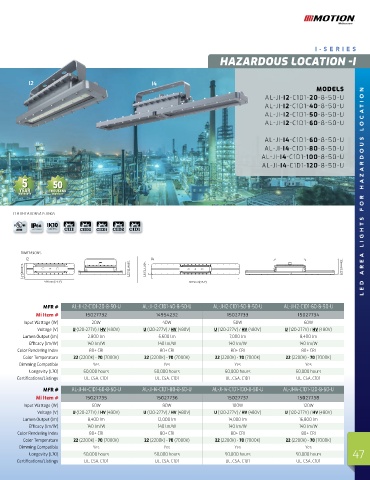

Page 47 - Abaco Lighting Catalog 2024
P. 47
I-SERIES
HAZARDOUS LOCATION -I
I2 I4
MODELS
AL-JI-I2-C1D1-20-8-50-U TION
AL-JI-I2-C1D1-40-8-50-U
AL-JI-I2-C1D1-50-8-50-U
AL-JI-I2-C1D1-60-8-50-U
AL-JI-I4-C1D1-60-8-50-U
AL-JI-I4-C1D1-80-8-50-U
AL-JI-I4-C1D1-100-8-50-U
AL-JI-I4-C1D1-120-8-50-U
5 50
YEAR THOUSAND
WARRANTY HOURS LIFE LED AREA LIGHTS FOR HAZARDOUS LOCA
CERTIFICATIONS/LISTINGS
66
CIII CIID2 CIID1 CID2 CID1
DIMENSIONS
I2 133mm[5.22"] 140mm[5.5"] I4 133mm[5.22"]
140mm[5.5"]
590mm[23.3"] 1,184mm[46.1"]
MFR # AL-JI-I2-C1D1-20-8-50-U AL-JI-I2-C1D1-40-8-50-U AL-JI-I2-C1D1-50-8-50-U AL-JI-I2-C1D1-60-8-50-U
Mi Item # 15027732 14954232 15027733 15027734
Input Wattage (W) 20W 40W 50W 60W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 2.800 lm 5.600 lm 7,000 lm 8,400 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K)
Dimming Compatible Yes Yes Yes Yes
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours 50,000 hours
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
MFR # AL-JI-I4-C1D1-60-8-50-U AL-JI-I4-C1D1-80-8-50-U AL-JI-I4-C1D1-100-8-50-U AL-JI-I4-C1D1-120-8-50-U
Mi Item # 15027735 15027736 15027737 15027738
Input Wattage (W) 60W 80W 100W 120W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 8,400 lm 12,000 lm 14,000 lm 16,800 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K)
Dimming Compatible Yes Yes Yes Yes
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours 50,000 hours 47
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
