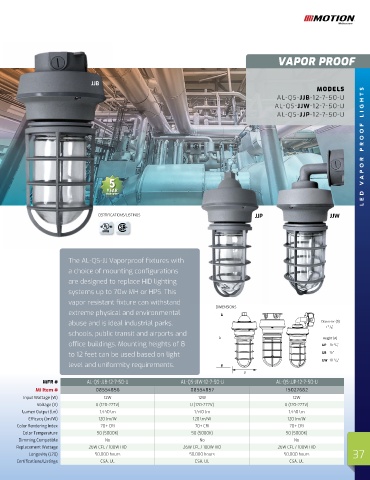

Page 37 - Abaco Lighting Catalog 2024
P. 37
VAPOR PROOF
JJB
MODELS
APOR PROOF LIGHTS
AL-QS-JJB-12-7-50-U
AL-QS-JJW-12-7-50-U
AL-QS-JJP-12-7-50-U
5
YEAR
WARRANTY LED V
CERTIFICATIONS/LISTINGS JJP JJW
5
YEAR
WARRANTY
The AL-QS-JJ Vaporproof fixtures with
a choice of mounting configurations
are designed to replace HID lighting
systems up to 70w MH or HPS. This
vapor resistant fixture can withstand
DIMENSIONS
extreme physical and environmental
abuse and is ideal industrial parks, Diameter (D)
7 ¹/₈”
schools, public transit and airports and
A Height (A)
office buildings. Mounting heights of 8 JJP 14 ³/₄”
to 12 feet can be used based on light JJB 15”
JJW 18 ¹/₄”
level and uniformity requirements.
D
MFR # AL-QS-JJB-12-7-50-U AL-QS-JJW-12-7-50-U AL-QS-JJP-12-7-50-U
Mi Item # 08554856 08554857 15027682
Input Wattage (W) 12W 12W 12W
Voltage (V) U (120-277V) U (120-277V) U (120-277V)
Lumen Output (lm) 1,440 lm 1,440 lm 1,440 lm
Efficacy (lm/W) 120 lm/W 120 lm/W 120 lm/W
Color Rendering Index 70+ CRI 70+ CRI 70+ CRI
Color Temperature 50 (5000K) 50 (5000K) 50 (5000K)
Dimming Compatible No No No
Replacement Wattage 26W CFL / 100W HID 26W CFL / 100W HID 26W CFL / 100W HID
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours 37
Certifications/Listings CSA, UL CSA, UL CSA, UL
