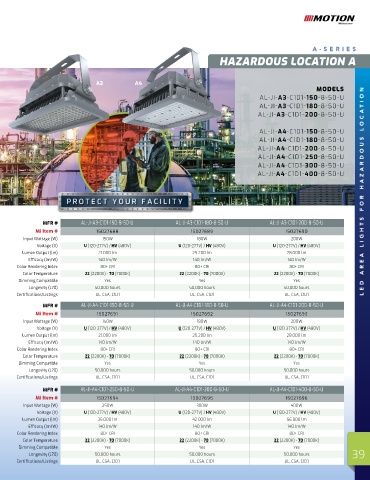

Page 39 - Abaco Lighting Catalog 2024
P. 39
A-SERIES
HAZARDOUS LOCATION A
A3 A4
MODELS
AL-JI-A3-C1D1-150-8-50-U TION
AL-JI-A3-C1D1-180-8-50-U
AL-JI-A3-C1D1-200-8-50-U
AL-JI-A4-C1D1-150-8-50-U
AL-JI-A4-C1D1-180-8-50-U
AL-JI-A4-C1D1-200-8-50-U
AL-JI-A4-C1D1-250-8-50-U
AL-JI-A4-C1D1-300-8-50-U
AL-JI-A4-C1D1-400-8-50-U
PROTECT YOUR FACILITY LED AREA LIGHTS FOR HAZARDOUS LOCA
MFR # AL-JI-A3-C1D1-150-8-50-U AL-JI-A3-C1D1-180-8-50-U AL-JI-A3-C1D1-200-8-50-U
Mi Item # 15027688 15027689 15027690
Input Wattage (W) 150W 180W 200W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 21.000 lm 25.200 lm 28.000 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K)
Dimming Compatible Yes Yes Yes
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
MFR # AL-JI-A4-C1D1-150-8-50-U AL-JI-A4-C1D1-180-8-50-U AL-JI-A4-C1D1-200-8-50-U
Mi Item # 15027691 15027692 15027693
Input Wattage (W) 150W 180W 200W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 21.000 lm 25.200 lm 28.000 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K)
Dimming Compatible Yes Yes Yes
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
MFR # AL-JI-A4-C1D1-250-8-50-U AL-JI-A4-C1D1-300-8-50-U AL-JI-A4-C1D1-400-8-50-U
Mi Item # 15027694 15027695 15027696
Input Wattage (W) 250W 300W 400W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 35.000 lm 42.000 lm 56.000 lm
Efficacy (lm/W) 140 lm/W 140 lm/W 140 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI
Color Temperature 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K) 22 (2200K) - 70 (7000K)
Dimming Compatible Yes Yes Yes
Longevity (L70) 50,000 hours 50,000 hours 50,000 hours 39
Certifications/Listings UL, CSA, C1D1 UL, CSA, C1D1 UL, CSA, C1D1
