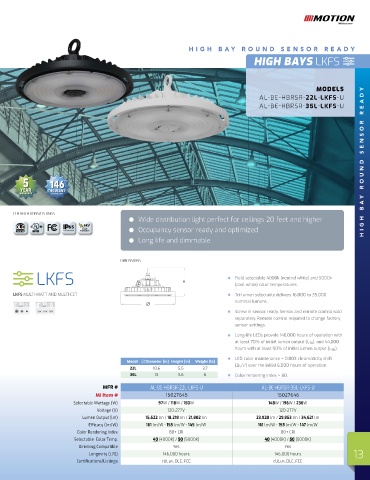

Page 13 - Abaco Lighting Catalog 2024

HIGH BA Y ROUND SENSOR READY
HIGH BAYS LKFS

MODELS
AL-BE-HBRSR-22L-LKFS-U
AL-BE-HBRSR-35L-LKFS-U Y ROUND SENSOR READY

5 146

YEAR THOUSAND
WARRANTY HOURS LIFE

CERTIFICATIONS/LISTINGS
Wide distribution light perfect for ceilings 20 feet and higher HIGH BA
6kV
65 Surge Occupancy sensor ready and optimized
Protection
Long life and dimmable

DIMENSIONS
LKFS H Field selectable 4000k (neutral white) and 5000k

(cool white) color temperatures.
LKFS MULTI-WATT AND MULTI-CCT Tri-lumen selectable delivers 16,000 to 35,000
nominal lumens.
Screw in sensor ready. Sensor and remote control sold
separately. Remote control required to change factory
sensor settings.
Long-life LEDs provide 146,000 hours of operation with
at least 70% of initial lumen output (L70), and 44,000
hours with at least 90% of initial lumen output (L90).
LED color maintenance < 0.003 chromaticity shift
Model Diameter (in) Height (in) Weight (lb) (Δu’v’) over the initial 6,000 hours of operation.
22L 10.6 5.5 3.7
35L 13 5.6 6 Color rendering index > 80.
MFR # AL-BE-HBRSR-22L-LKFS-U AL-BE-HBRSR-35L-LKFS-U
Mi Item # 15027645 15027646
Selectable Wattage (W) 97W / 118W / 150W 148W / 196W / 236W
Voltage (V) 120-277V 120-277V
Lumen Output (lm) 15,522 lm / 18,218 lm / 21,802 lm 23,920 lm / 29,953 lm / 34,621 lm
Efficacy (lm/W) 161 lm/W - 155 lm/W - 145 lm/W 161 lm/W - 153 lm/W - 147 lm/W
Color Rendering Index 80+ CRI 80+ CRI
Selectable Color Temp. 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes
Longevity (L70) 146,000 hours 146,000 hours 13
Certifications/Listings cULus, DLC, FCC cULus, DLC, FCC
