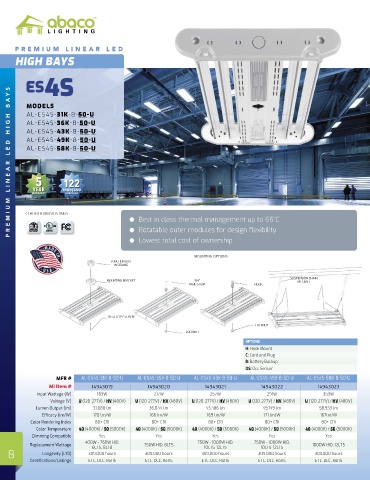

Page 8 - Abaco Catalog 2022 v3.5.3
P. 8

PREMIUM LINEAR LED HIGH BA YS

    8        AL-ES4S





    YS       MODELS
             AL-ES4S-31K-8-50-U
    PREMIUM LINEAR LED HIGH BA
             AL-ES4S-36K-8-50-U
             AL-ES4S-43K-8-50-U
             AL-ES4S-49K-8-50-U
             AL-ES4S-58K-8-50-U





                                                                           10
                                                                                  122
            HIGHEST EFFICIENCY AND LONGEST LIFE                          UP TO YEAR  THOUSAND
                                                                          WARRANTY  HOURS LIFE
                                                         MOUNTING OPTIONS
                               JUNCTION BOX
                                 IN CEILING

                                                                                            SUSPENSION
                                MOUNTING                   3/4”                            CHAIN OR CABLE
                                 BRACKET                 RIGID STEM            HOOK




                                10-32 X 1/4”
                                 SCREW
                                                                               LOCKNUT
                                                        LOCKNUT

                 Model Name       AL-ES4S-31K-8-50-U         AL-ES4S-36K-8-50-U         AL-ES4S-43K-8-50-U
                 Input Wattage (W)       183W                        217W                       257W
                     Voltage (V)  U (120-277V) / HV (480V)   U (120-277V) / HV (480V)   U (120-277V) / HV (480V)
                Lumen Output (lm)       31,088 lm                  36,044 lm                  43,486 lm
                  Efficacy (lm/W)       170 lm/W                   166 lm/W                    169 lm/W
               Color Rendering Index    80+ CRI                     80+ CRI                    80+ CRI
                Color Temperature  40 (4000K) / 50 (5000K)   40 (4000K) / 50 (5000K)     40 (4000K) / 50 (5000K)
               Dimming Compatible         Yes                        Yes                         Yes
              Replacement Wattage  400W - 750W HID, 6LT5, 8LT8   750W HID, 8LT5       750W - 1000W HID, 10LT5-12LT5
                   Longevity (L70)    309,000 hours              309,000 hours              309,000 hours
              Certifications/Listings  ETL, DLC, RoHS            ETL, DLC, RoHS             ETL, DLC, RoHS
                 Model Name      AL-ES4S-49K-8-50-U          AL-ES4S-58K-8-50-U
                 Input Wattage (W)       291W                       353W
                     Voltage (V)  U (120-277V) / HV (480V)   U (120-277V) / HV (480V)
                Lumen Output (lm)       49,749 lm                  58,933 lm
                  Efficacy (lm/W)       171 lm/W                   167lm/W
              Color Rendering Index     80+ CRI                     80+ CRI
                Color Temperature  40 (4000K) / 50 (5000K)   40 (4000K) / 50 (5000K)
               Dimming Compatible         Yes                        Yes
              Replacement Wattage  750W - 1000W HID, 10LT5-12LT5  1000W HID, 12LT5
                   Longevity (L70)    309,000 hours              309,000 hours
              Certifications/Listings  ETL, DLC, RoHS            ETL, DLC, RoHS
   3   4   5   6   7   8   9   10   11   12   13
