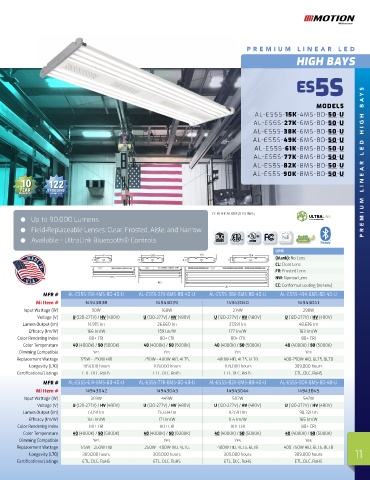

Page 11 - Abaco Lighting Catalog 2024

PREMIUM LINEAR LED
HIGH BAYS

ES 5S YS

MODELS
AL-ES5S-15K-4MS-80-50-U
AL-ES5S-27K-6MS-80-50-U
AL-ES5S-38K-6MS-80-50-U
AL-ES5S-49K-6MS-80-50-U
AL-ES5S-61K-8MS-80-50-U
AL-ES5S-77K-8MS-80-50-U
AL-ES5S-82K-8MS-80-50-U PREMIUM LINEAR LED HIGH BA
AL-ES5S-90K-8MS-80-50-U
10 122
UP TO
YEAR THOUSAND
WARRANTY HOURS LIFE

CERTIFICATIONS/LISTINGS
Up to 90,000 Lumens ULTRALINK
Controls ReIMAGINED
Field-Replaceable Lenses: Clear, Frosted, Aisle, and Narrow
Available • UltraLink Bluetooth® Controls

LENS
7 9.8 12.6 15.4
2.1 2.1 2.1 2.1 (blank): No Lens
CL: Clear Lens
FR: Frosted Lens
18.5 NW: Narrow Lens
18.5
36 CC: Conformal coating (no lens)
MFR # AL-ES5S-15K-4MS-80-40-U AL-ES5S-27K-6MS-80-40-U AL-ES5S-38K-6MS-80-40-U AL-ES5S-49K-6MS-80-40-U
Mi Item # 14943038 14943039 14943040 14943041
Input Wattage (W) 90W 168W 214W 298W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 14,915 lm 26,660 lm 37,931 lm 48,636 lm
Efficacy (lm/W) 166 lm/W 159 lm/W 177 lm/W 163 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes Yes
Replacement Wattage 175W - 250W HID 250W - 400W HID, 4LT5, 400W HID, 4LT5, 6LT8 400-750W HID, 6LT5, 8LT8
Longevity (L70) 309,000 hours 309,000 hours 309,000 hours 309,000 hours
Certifications/Listings ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS
MFR # AL-ES5S-61K-8MS-80-40-U AL-ES5S-77K-8MS-80-40-U AL-ES5S-82K-8MS-80-40-U AL-ES5S-90K-8MS-80-40-U
Mi Item # 14943042 14943043 14943044 14943045
Input Wattage (W) 369W 449W 502W 547W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 61,191 lm 76,684 lm 82,691 lm 90,321 lm
Efficacy (lm/W) 166 lm/W 171 lm/W 165 lm/W 165 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes Yes
Replacement Wattage 175W - 250W HID 250W - 400W HID, 4LT5, 400W HID, 4LT5, 6LT8 400-750W HID, 6LT5, 8LT8
Longevity (L70) 309,000 hours 309,000 hours 309,000 hours 309,000 hours 11
Certifications/Listings ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS
