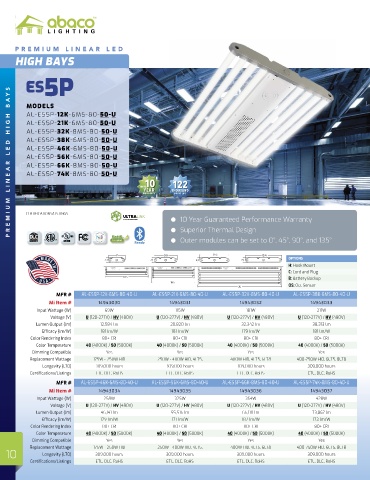

Page 10 - Abaco Lighting Catalog 2024

PREMIUM LINEAR LED
HIGH BAYS

ES 5P
YS
PREMIUM LINEAR LED HIGH BA
MODELS
AL-ES5P-12K-6MS-80-50-U
AL-ES5P-21K-6MS-80-50-U
AL-ES5P-32K-8MS-80-50-U
AL-ES5P-38K-6MS-80-50-U
AL-ES5P-46K-6MS-80-50-U
AL-ES5P-56K-6MS-80-50-U
AL-ES5P-66K-8MS-80-50-U
AL-ES5P-74K-8MS-80-50-U
10 122
UP TO
YEAR THOUSAND
WARRANTY HOURS LIFE

CERTIFICATIONS/LISTINGS
ULTRALINK
Controls ReIMAGINED 10 Year Guaranteed Performance Warranty
Superior Thermal Design
Outer modules can be set to 0°, 45°, 90°, and 135°

7 9.8 12.6 15.4
2.1 2.1 2.1 2.1 OPTIONS
H: Hook Mount
C: Cord and Plug
18.5 B: Battery Backup
18.5
36 OS: Occ Sensor
MFR # AL-ES5P-12K-6MS-80-40-U AL-ES5P-21K-6MS-80-40-U AL-ES5P-32K-8MS-80-40-U AL-ES5P-38K-6MS-80-40-U
Mi Item # 14943030 14943031 14943032 14943033
Input Wattage (W) 69W 115W 181W 211W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 12,584 lm 20,820 lm 32,342 lm 38,313 lm
Efficacy (lm/W) 181 lm/W 181 lm/W 179 lm/W 181 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes Yes
Replacement Wattage 175W - 250W HID 250W - 400W HID, 4LT5, 400W HID, 4LT5, 6LT8 400-750W HID, 6LT5, 8LT8
Longevity (L70) 309,000 hours 309,000 hours 309,000 hours 309,000 hours
Certifications/Listings ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS
MFR # AL-ES5P-46K-6MS-80-40-U AL-ES5P-56K-6MS-80-40-U AL-ES5P-66K-8MS-80-40-U AL-ES5P-74K-8MS-80-40-U
Mi Item # 14943034 14943035 14943036 14943037
Input Wattage (W) 258W 325W 364W 428W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 46,141 lm 55,516 lm 66,118 lm 73,867 lm
Efficacy (lm/W) 179 lm/W 171 lm/W 182 lm/W 173 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes Yes
10 Replacement Wattage 175W - 250W HID 250W - 400W HID, 4LT5, 400W HID, 4LT5, 6LT8 400-750W HID, 6LT5, 8LT8
309,000 hours
309,000 hours
Longevity (L70)
309,000 hours
309,000 hours
Certifications/Listings ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS
