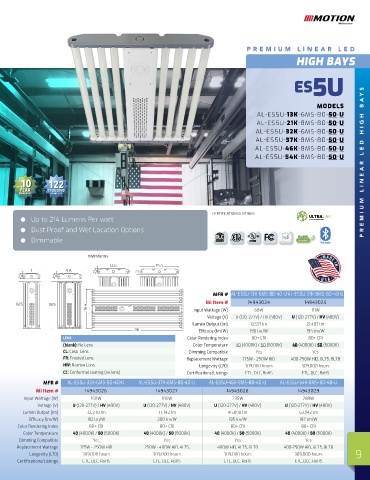

Page 9 - Abaco Lighting Catalog 2024

PREMIUM LINEAR LED
HIGH BAYS

ES 5U YS

MODELS
AL-ES5U-13K-6MS-80-50-U
AL-ES5U-21K-8MS-80-50-U
AL-ES5U-32K-6MS-80-50-U
AL-ES5U-37K-8MS-80-50-U
AL-ES5U-46K-8MS-80-50-U
AL-ES5U-54K-8MS-80-50-U PREMIUM LINEAR LED HIGH BA

10 122
UP TO
YEAR THOUSAND
WARRANTY HOURS LIFE

CERTIFICATIONS/LISTINGS
Up to 214 Lumens Per watt ULTRALINK
Controls ReIMAGINED
Dust Proof and Wet Location Options
Dimmable

DIMENSIONS
12.6 15.4
7 9.8 2.1 2.1
2.1 2.1

MFR # AL-ES5U-13K-6MS-80-40-U AL-ES5U-21K-8MS-80-40-U
18.5 18.5 Mi Item # 14943024 14943025
15.4 Input Wattage (W) 68W 111W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 12,971 lm 21,487 lm
36 Efficacy (lm/W) 190 lm/W 194 lm/W
LENS Color Rendering Index 80+ CRI 80+ CRI
(blank): No Lens Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
CL: Clear Lens Dimming Compatible Yes Yes
FR: Frosted Lens Replacement Wattage 175W - 250W HID 400-750W HID, 6LT5, 8LT8
NW: Narrow Lens Longevity (L70) 309,000 hours 309,000 hours
CC: Conformal coating (no lens) Certifications/Listings ETL, DLC, RoHS ETL, DLC, RoHS
MFR # AL-ES5U-32K-6MS-80-40-U AL-ES5U-37K-8MS-80-40-U AL-ES5U-46K-8MS-80-40-U AL-ES5U-54K-8MS-80-40-U
Mi Item # 14943026 14943027 14943028 14943029
Input Wattage (W) 168W 186W 235W 289W
Voltage (V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V) U (120-277V) / HV (480V)
Lumen Output (lm) 32,230 lm 37,342 lm 45,890 lm 53,942 lm
Efficacy (lm/W) 192 lm/W 200 lm/W 195 lm/W 187 lm/W
Color Rendering Index 80+ CRI 80+ CRI 80+ CRI 80+ CRI
Color Temperature 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K) 40 (4000K) / 50 (5000K)
Dimming Compatible Yes Yes Yes Yes
Replacement Wattage 175W - 250W HID 250W - 400W HID, 4LT5, 400W HID, 4LT5, 6LT8 400-750W HID, 6LT5, 8LT8
Longevity (L70) 309,000 hours 309,000 hours 309,000 hours 309,000 hours 9
Certifications/Listings ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS ETL, DLC, RoHS
