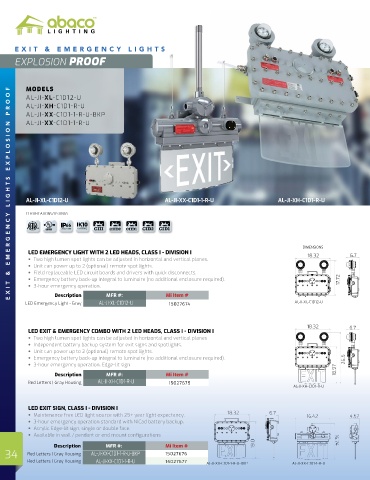

Page 34 - Abaco Lighting Catalog 2024

EXIT & EMERGENCY LIGHTS
EXPLOSION PROOF

MODELS
EXIT & EMERGENCY LIGHTS EXPLOSION PROOF
AL-JI-XL-C1D12-U
AL-JI-XH-C1D1-R-U
AL-JI-XX-C1D1-1-R-U-BKP
AL-JI-XX-C1D1-1-R-U

AL-JI-XL-C1D12-U AL-JI-XX-C1D1-1-R-U AL-JI-XH-C1D1-R-U

CERTIFICATIONS/LISTINGS
66
CIII CIID2 CIID1 CID2 CID1

DIMENSIONS
LED EMERGENCY LIGHT WITH 2 LED HEADS, CLASS I - DIVISION I 18.32 6.7
• Two high lumen spot lights can be adjusted in horizontal and vertical planes.
• Unit can power up to 2 (optional) remote spot lights.
• Field replaceable LED circuit boards and drivers with quick disconnects.
• Emergency battery back-up integral to luminaire (no additional enclosure required). 17.72
• 3-hour emergency operation.
Description MFR #: Mi Item #
LED Emergency Light - Gray AL-JI-XL-C1D12-U 15027674 AL-JI-XL-C1D12-U

18.32 6.7
LED EXIT & EMERGENCY COMBO WITH 2 LED HEADS, CLASS I - DIVISION I
• Two high lumen spot lights can be adjusted in horizontal and vertical planes
• Independent battery backup system for exit signs and spotlights.
• Unit can power up to 2 (optional) remote spot lights.
• Emergency battery back-up integral to luminaire (no additional enclosure required). 26.5
• 3-hour emergency operation. Edge-lit sign
Description MFR #: Mi Item # 18.97
Red Letters | Gray Housing AL-JI-XH-C1D1-R-U 15027675
AL-JI-XH-C1D1-R-U

LED EXIT SIGN, CLASS I - DIVISION I
• Maintenance free LED light source with 25+ year light expectancy. 18.32 6.7 16.42 4.57
• 3-hour emergency operation standard with NiCad battery backup.
• Acrylic Edge-lit sign, single or double face.
• Available in wall / pendant or end mount configurations
Description MFR #: Mi Item # 19.0 16.74
34 Red Letters | Gray Housing AL-JI-XX-C1D1-1-R-U-BKP 15027676
Red Letters | Gray Housing AL-JI-XX-C1D1-1-R-U 15027677 AL-JI-XX-C1D1-1-R-U-BKP AL-JI-XX-C1D1-1-R-U
